Ferrite Core SMD Magnetic Shielding Signal Transformer 900mW

Name: Ferrite Core SMD Magnetic Shielding Signal Transformer 900mW
Brand: Shinhom
Price: 1 USD

Wholesale Ferrite Core SMD Magnetic Shielding Signal Transformer 900mW from china suppliers

Brand Name : Shinhom

Model Number : SDRH0606D

Certification : RoHS/SGS/ISO9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Usage : Balance current

Structure of Magnetizer : Mn-Zn Ferrite Core

Product name : Drive transformer

Power range : 500-900mW

Operating temperature : -25 ℃to +125℃

Contact Now

Signal Transformer , Magnetic Shielding Transformer , SMD High Frequency Transformer , Drive transformer

Electrical specification:

Turns ratio: (1-2):(3-5)=4.6:1
L(1-2): 800uH typ. @50KHz,0.1V
DCR(1-2): 7.0Ω Max.@20℃
DCR(3-5): 0.8Ω Max.@20℃
Pri voltage: 5V
Operating frequency: 50KHz
Power range: 500-900mW
Dielectric strength: 20Vac,50Hz
Operating temperature: -25 ℃to +125℃(Include temp. Rise)
Storage temperature: -25 ℃to +85℃

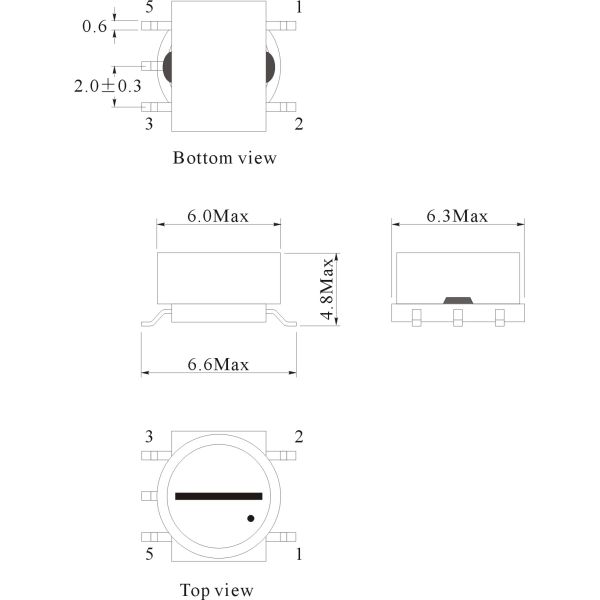

Ferrite Core SMD Magnetic Shielding Signal Transformer 900mW

ABOUT US:

Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.
