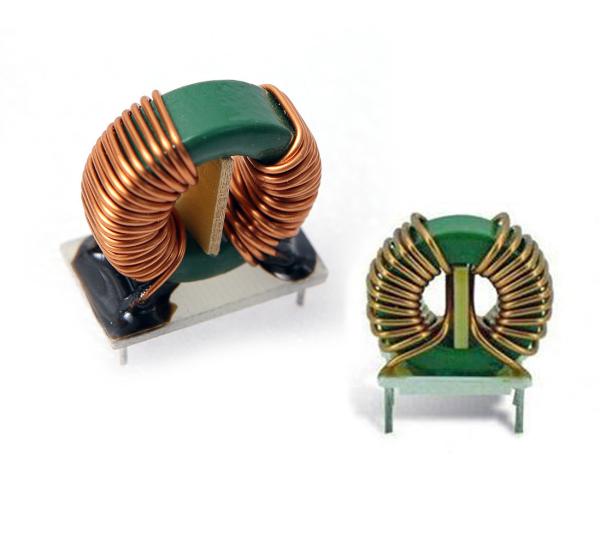

PCB Base 10kHz Toroidal Common Mode Choke For Television Receiver

Name: PCB Base 10kHz Toroidal Common Mode Choke For Television Receiver
Brand: Shinhom
Price: 1 USD

Wholesale PCB Base 10kHz Toroidal Common Mode Choke For Television Receiver from china suppliers

Brand Name : Shinhom

Model Number : TRF series

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Name : Common mode filter

Turns ratio : 1:1

Core : Ferrite core

Test frequency : 10kHz

Base : PCB , Plastics

Operating temperature : -40ºC to +125ºC

Contact Now

Toroidal Common Mode Choke , Toroidal inductor , Common mode coil

Common mode inductor, also known as Common mode Choke, is commonly used to filter Common mode EMI signals in switching power supplies of computers. In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.
Toroidal Inductors provide a number of advantages over other inductor varieties

Features

Custom-made Common mode choke coils for your special application
Common-mode filter
Toroidal common-mode inductor
Small-profile choke coils
Ferrite core toroid choke coils
Large-current choke coils
Low resistance choke coils
For excellent EMI suppressor
Low DCR common mode
Lead free products, RoHS compliant.

Applications

Compact fluorescent lamp
Television receiver
Radio cassette player
PC power supply
Monitor,audio,VCD,DCD
UPS
The electronic apparatus
The noise rejection
Induction cooker,etc.

Specification

High current capacity
Low core loss at frequency
High reliability, efficiency
Small packaged size
Operating Temperature: -30°C to +80°C
Electrical Specifications at 20°C

Notes: Customized is available
